MAX SPEED & POWER for Uber-sized vehicle (1/6, 1/5)

• WSBLM: Waterproof Sensored Brushless Motor Technology

What's in the box?

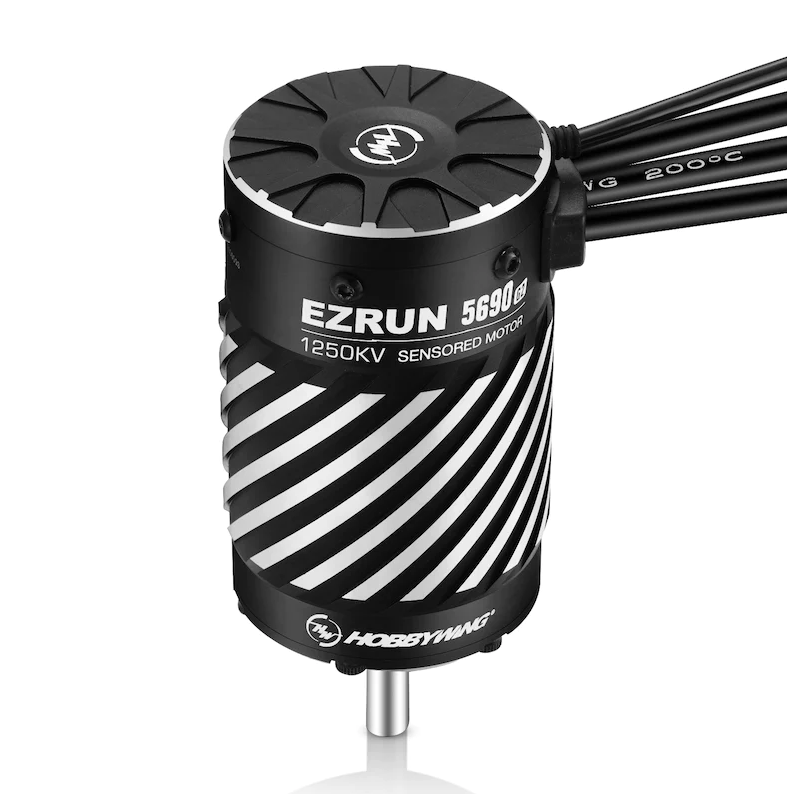

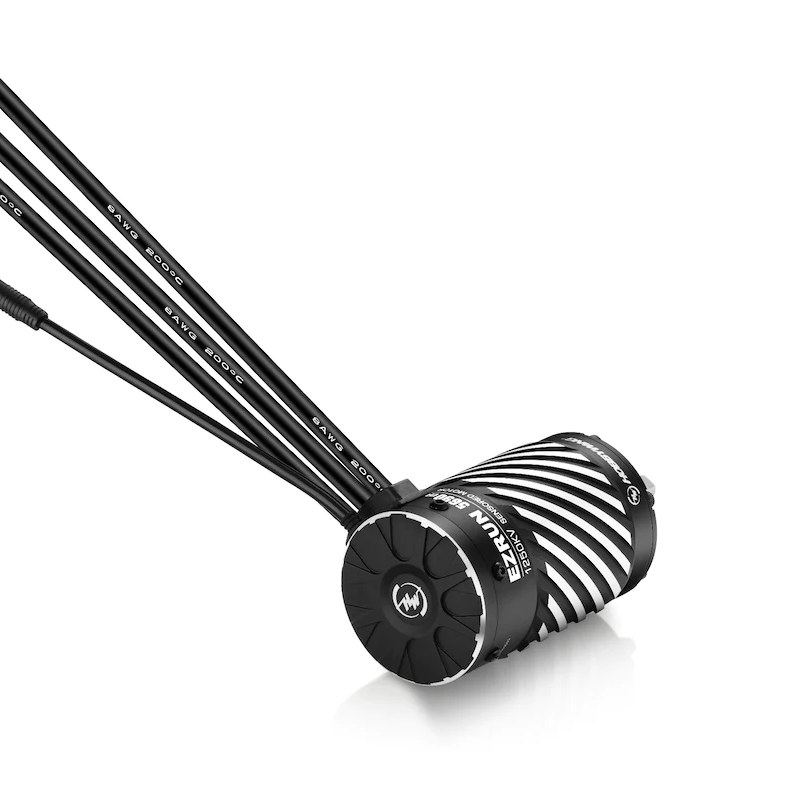

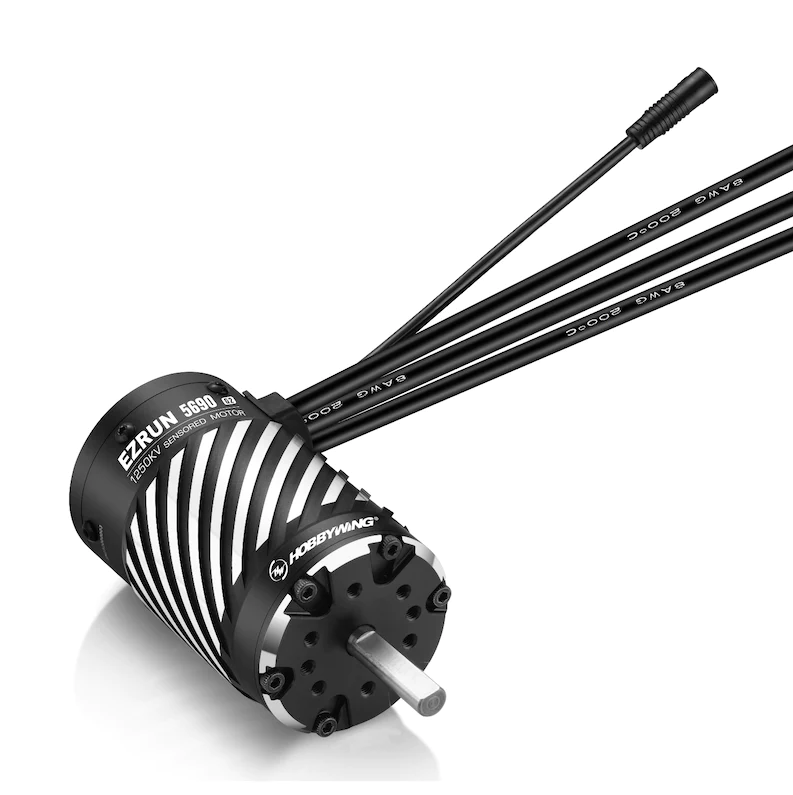

• (1) EzRun 5690 SD brushless motor
• (3) 6.5mm motor wire plugs (factory installed)
• (3) extra 8mm motor wire plugs* for connecting larger size ESC
  (ex EzRun MAX5 G2 ESC)
• (1) User's manual

*ATTENTION: When pairing with the EzRun 5690 SD G2 motor, it is necessary to replace the motor wire plugs with 8mm plugs (plugs included) for the MAX5 G2 ESC.

Bottomline

• Compared with the previous generation, it has added a new waterproof sensor cable, upgraded to a sensored system, with better accelerate linearity and stronger explosive force.

• It has perfect compatibility when it is matched with Hobbywing EZRUN MAX5 G2 ESC, the esc can automatically recognize this motor, and build a power system with full sensor mode, providing better control performance and more delicate control feel, and also realizing the motor overheat protection function.

• The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.

• CNC machined aluminum housing, high purity copper windings, high strength explosion-proof rotor, ultrathin silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.

• The innovative new sensor interface and rubber cover bearing have better waterproof and dustproof effect than the traditional sensor motor

Specs:

• KV: 1250KV
• LiPos: 3-8S
• No-load Current: 6.6A
• Diameter: 56mm
• Lenght: 90.2mm
• Shaft Diameter: 8mm
• Shaft Lenght: 30mm
• Bearings: D22xD8xT7 (front) & D19xD8xT6 (rear)
• Poles: 4
• Weight: 867g
• Applications: 1/6th Short course truck, 1/5th Light-load truck
